Home > products > Auxiliary Machine > Plastic Extrusion Moulding Process Flat Extrusion T Die Lamination Machine

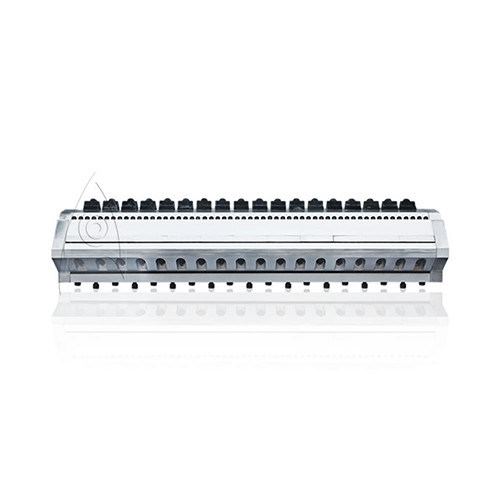

Plastic Extrusion Moulding Process Flat Extrusion T Die Lamination Machine

Product Details

Place of Origin: China

Brand Name: DaLi

Certification: CE

Model Number: DL-600

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: 3000--4500 USD Per Set

Packaging Details: Regular Packing with blanket and stretch film or customized requirment package !

Delivery Time: 1 month

Payment Terms: T/T

Supply Ability: 50 sets per month

Get Best Price
Highlight:

plastic extrusion moulding process

,

Plastic Extrusion Mould

,

t die extrusion process

Name:
PP/PE/EVA Plastics T-die Mould
Mould Width:
In General,width Is From To (could Be Customized)
Runner:
Coated Hanger Flow Channel
Shape Mould:
Extrusion Mould
Adopts Die Steel:
50CrNiMo,Germany2738,4140,P30,P20 Or 38CRMOAL,B30H
Heater Element:
Stainless Steel Heating Rod
Precision Of Polishing:
Polishing Precision Of The Stream Surface Of The Die Lip 0.03-0.04(um)other Parts Is 0.04-0.05(um)
After-sales Service:
Rovided: Engineers Available To Service Machinery Overseas
Galvanization:
The Stream Surface Of The Die Head Are Treated By Chrome Treatment. Thickness0.02-0.03mm; Hardness: 60-65Rockwellc; The Chrome Treatment Thickness Of The Ektexine Is 0.01-0.02mm.
Product Name:
Plastic Extrusion Mould
Name:
PP/PE/EVA Plastics T-die Mould
Mould Width:
In General,width Is From To (could Be Customized)
Runner:
Coated Hanger Flow Channel
Shape Mould:
Extrusion Mould
Adopts Die Steel:
50CrNiMo,Germany2738,4140,P30,P20 Or 38CRMOAL,B30H
Heater Element:
Stainless Steel Heating Rod
Precision Of Polishing:
Polishing Precision Of The Stream Surface Of The Die Lip 0.03-0.04(um)other Parts Is 0.04-0.05(um)
After-sales Service:
Rovided: Engineers Available To Service Machinery Overseas
Galvanization:
The Stream Surface Of The Die Head Are Treated By Chrome Treatment. Thickness0.02-0.03mm; Hardness: 60-65Rockwellc; The Chrome Treatment Thickness Of The Ektexine Is 0.01-0.02mm.
Product Name:
Plastic Extrusion Mould
Plastic Extrusion Moulding Process Flat Extrusion T Die Lamination Machine

 Chrom Coated Hanger Type Plastic Extrusion Mould/Flat Extrusion T-Die

Plastic Extrusion Mould/Flat Extrusion T-Die



Modularized distributor Special single flow channel die head Multi materials co-Extrusion, such as PP, PE, PS and so on.

can produce the film or sheet thickness 0.005-0.1mm.

Die head standard width :1100-500mm adjustable

1300-600mm adjustable

1500-800mm adjustable

1700-1000mm adjustable

* with the elimination of thick inside edge of the blocking device functions.

* thickness range of products:0.005-0.1mm arbitray adjustment

* die heating:district heating stainless steel heating rods or cast plate heating zones

* lip-wide push mode to fine tune the structure

* products accuracy within 2%





Product name plastic extrusion mould
Mould width In general,width is from to (could be customized)
Product width According to clients’ demand
Die orifice adjusting mode Sensitive die lip adjustment via Push or Pull bolt
Voltage 220V, 50HZ (Could be ordered by your request)
Driving power within 5KW
Mode of connection closed cycled connection
Adopts die steel 50CrNiMo,Germany2738,4140,P30,P20 or 38CRMOAL,B30H,
Heater element Stainless steel heating rod
Fastening piece (screw) 12.9. High strength
Precision of polishing Polishing precision of the stream surface of the die lip 0.03-0.04(um)other parts is 0.04-0.05(um)
Galvanization the stream surface of the die head are treated by chrome treatment. Thickness0.02-0.03mm; hardness: 60-65Rockwellc; the chrome treatment thickness of the ektexine is 0.01-0.02mm.
Other spare parts Screen changers,feedblocks,melt pump,etc
Delivery time 7days-60days(According to the specific goods)
Service after sales In general for one year,the supplier provide the technology support forever.



  • Showcase of the assmebly workshop

Plastic Extrusion Moulding Process Flat Extrusion T Die Lamination Machine 0



  • Aplication of the products

Plastic Extrusion Moulding Process Flat Extrusion T Die Lamination Machine 1

Packing & Loading Details (or customized packing instruction)

1. Simply wrapped by the blanket first and the tight it by the cling stretch film.

2. Export standard are supplied with well packed by plywood cartoon or inron cartoon. We can make the packages according to customer's request.





Plastic Extrusion Moulding Process Flat Extrusion T Die Lamination Machine 2



Plastic Extrusion Moulding Process Flat Extrusion T Die Lamination Machine 3



Plastic Extrusion Moulding Process Flat Extrusion T Die Lamination Machine 4



  • Briefing about the company

Changzhou Da Li Plastic Machinery Co., Ltd.



Changzhou Xin Da Li Plastic Machinery Co., Ltd. is a subsidiary of Changzhou Da Li Plastic Machinery Co., Ltd.,

located in Changzhou Wujin Science and Technology Industrial Park, was established in March 2015 with a registered

capital of 10.8 million yuan, covering an area of over 10,000 square feet. We provide our clients with all kinds of plastic

machinery products and technical services.





Plastic Extrusion Moulding Process Flat Extrusion T Die Lamination Machine 5

Certification

Plastic Extrusion Moulding Process Flat Extrusion T Die Lamination Machine 6



Scenarions of busineess negotiation



Plastic Extrusion Moulding Process Flat Extrusion T Die Lamination Machine 7

Plastic Extrusion Moulding Process Flat Extrusion T Die Lamination Machine 8



Our Client representatives:



Plastic Extrusion Moulding Process Flat Extrusion T Die Lamination Machine 9

Plastic Extrusion Moulding Process Flat Extrusion T Die Lamination Machine 10

Our Services

One station service to make sure our customer get ancillary equipments and good service.

(1) Professional advice and rich experience help to choose machine.

(2) Warranty time: All machines are guaranteed for one year.

(3) Before the dispatch the equipment, we will conduct the commission of the machine and invite the client representative join us to witness it.

Once the machine reached the site of the clients, we will send our technicals to mantle up and commisson the machine, and train the local

employee.

(4)Any problem: If you have any questions or any demands, we will reply you within 24 hours inquiry.

(5) Additives: installation book, Manual book, tool box will be sent with machine.

Product Quality

All products are guaranteed for one year, if any problems happen in guarantee period, our company will maintain for free.

Technical Service

We can provide design, installation and debugging services or remote maintenance teaching.

Delivery The Cargo To Nearest Port

We will arrange the shipment and delivery the cargo to your nearest port, save time and cost.

Detail Product Information

Provide picture, video, instruction and product brochure.

Reply Timely

24 hours hot line ,we will reply email within 12 hours.



FAQ

1. What about your machine quality?
Our factory has more than 22 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate;

already exported to many countries and areas; already got customer’s good reputation.
2. What about your machine price?
Anytime we will garanteen quality first, no matter price is good or not for us. Quality is first, on the top quality basis, of coursse you will get r

easonable and satisfied price!

3. What about the delivey date?

Due to the non-standard size machine, we need to book all the relative parts according to the requirement of the clients, the delivery date would

be 1-- 3 moths accordingly.
3. How can you ensure the machines' quality after we put the order?
Before the delivery, we will send you machines' pictures and videos, or you can come to our factory to make the quality checking by yourself,

or by the third party inspection organization that contacted by your side.
