Home > products > Geomembrane Sheet Production Line > 0.5mm HDPE Sheet Geomembrane Making Machine , 8m/ Min Geogrid Production Line

0.5mm HDPE Sheet Geomembrane Making Machine , 8m/ Min Geogrid Production Line

Product Details

Place of Origin: China

Brand Name: DaLi

Certification: CE

Model Number: DL-6300

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: 250000--450000 USD Per Set

Packaging Details: Regular Packing with blanket and stretch film or customized requirment package !

Delivery Time: 1-3 months

Payment Terms: T/T

Supply Ability: 3 sets per month

Get Best Price
Highlight:

0.5mm Geomembrane Making Machine

,

HDPE geogrid production line

,

8m/ min geogrid production line

Name:
0.5mm To 3mm HDPE Sheet Geomembrane Making Machine
Raw Material:
HDPE; LLDPE
Thickness Of Film:
0.5mm--3mm
Width:
6300mm
Total Installtion Power:
1200kw
Dimension:
26mx12.5mx4.5m
Capacity:
800kg/h
Line Speed:
1-8m/ Min
Key Points:
Siemens Motor,Siemens PLC Control System,trimming Recycling System
After-sales Service:
Rovided: Engineers Available To Service Machinery Overseas
Automatic Level:
Automatic
Optional:
Corona Part, Thickness Gauge Device
Name:
0.5mm To 3mm HDPE Sheet Geomembrane Making Machine
Raw Material:
HDPE; LLDPE
Thickness Of Film:
0.5mm--3mm
Width:
6300mm
Total Installtion Power:
1200kw
Dimension:
26mx12.5mx4.5m
Capacity:
800kg/h
Line Speed:
1-8m/ Min
Key Points:
Siemens Motor,Siemens PLC Control System,trimming Recycling System
After-sales Service:
Rovided: Engineers Available To Service Machinery Overseas
Automatic Level:
Automatic
Optional:
Corona Part, Thickness Gauge Device
0.5mm HDPE Sheet Geomembrane Making Machine , 8m/ Min Geogrid Production Line

one cloth one film, two cloth one film HDPE composite geomembrane film production line

       0.5mm to 3mm HDPE Sheet Geomembrane Making Machine



  Urban municipal environmental protection, environmental sanitation and anti-seepage projects (such as domestic waste landfills, sewage treatment, toxic and hazardous treatment plants, dangerous goods warehouses, industrial wastes, construction and blasting waste, etc.) 2. Water conservancy anti-seepage projects (such as rivers Seepage prevention, plugging, reinforcement of lakes, reservoirs, dams, seepage prevention of canals, vertical core walls, lakes, etc.) 3. Municipal engineering anti-seepage and waterproof engineering (underground engineering of subways, buildings and roof reservoirs, anti-seepage of roof gardens, lining of sewage pipes). 4. Anti-seepage engineering for landscaping and water features (artificial lakes, ponds, bottom lining of golf course ponds, slope protection, etc.). 5. Anti-seepage engineering for traffic foundation (reinforcement of highway foundation, anti-seepage of culvert).



   Dali Plastics Machinery Com. ltd is specialized in designing and manufacturing flexible width of geotextile, geomembrance, composite geomembrance,3D geomat,grosyntheic clay liner,geogrid and other geosynthetic materials machine .The products are widely used in foundation reinforecement of highways, railways,airports,municipal projects,anti-seepage of construction projects,landscaping,landfills,sewage treament,soild waste disposla,waterproffing projects and etc.



Main technical parameters:



Products

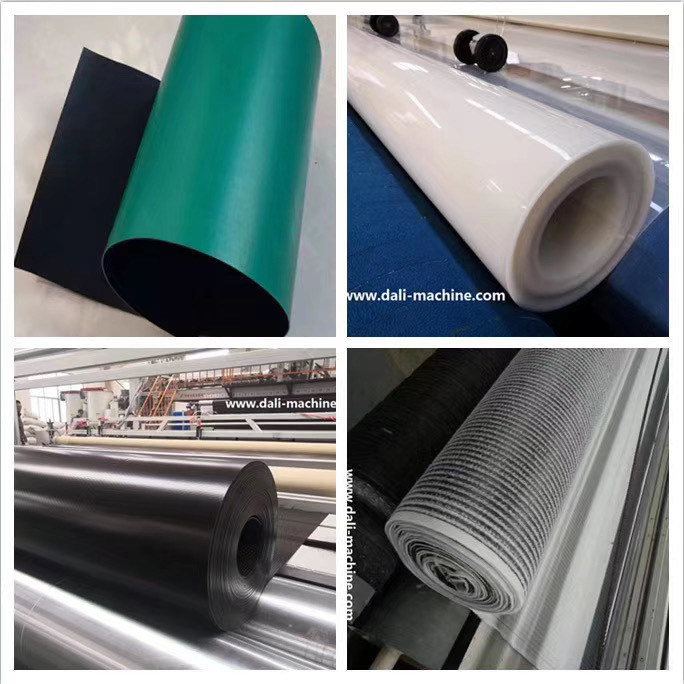

Smooth sheet,Textured Sheet, Spraying rough sheet, Geotextile composite sheet

Thickness range(mm)

0.1-3.0mm

T-die size(mm)

2300 3300 4300 5300 6300 7300 8300 9300

Max working width(mm)

2000 3000 4000 5000 6000 7000 8000 9000

Cooling Method



Circulating water cooling







0.5mm HDPE Sheet Geomembrane Making Machine , 8m/ Min Geogrid Production Line 00.5mm HDPE Sheet Geomembrane Making Machine , 8m/ Min Geogrid Production Line 1



1. Simply wrapped by the blanket first and the tight it by the cling stretch film.

2. Export standard are supplied with well packed by plywood cartoon or inron cartoon. We can make the packages according to customer's request.

0.5mm HDPE Sheet Geomembrane Making Machine , 8m/ Min Geogrid Production Line 2



  • Briefing about the company

Changzhou Da Li Plastic Machinery Co., Ltd.



Changzhou Xin Da Li Plastic Machinery Co., Ltd. is a subsidiary of Changzhou Da Li Plastic Machinery Co., Ltd.,

located in Changzhou Wujin Science and Technology Industrial Park, was established in March 2015 with a registered

capital of 10.8 million yuan, covering an area of over 10,000 square feet. We provide our clients with all kinds of plastic

machinery products and technical services.





0.5mm HDPE Sheet Geomembrane Making Machine , 8m/ Min Geogrid Production Line 3

Certification

0.5mm HDPE Sheet Geomembrane Making Machine , 8m/ Min Geogrid Production Line 4



Scenarions of busineess negotiation



0.5mm HDPE Sheet Geomembrane Making Machine , 8m/ Min Geogrid Production Line 5



Our Client representatives:



0.5mm HDPE Sheet Geomembrane Making Machine , 8m/ Min Geogrid Production Line 6

0.5mm HDPE Sheet Geomembrane Making Machine , 8m/ Min Geogrid Production Line 7

Our Services

One station service to make sure our customer get ancillary equipments and good service.

(1) Professional advice and rich experience help to choose machine.

(2) Warranty time: All machines are guaranteed for one year.

(3) Before the dispatch the equipment, we will conduct the commission of the machine and invite the client representative join us to witness it.

Once the machine reached the site of the clients, we will send our technicals to mantle up and commisson the machine, and train the local

employee.

(4)Any problem: If you have any questions or any demands, we will reply you within 24 hours inquiry.

(5) Additives: installation book, Manual book, tool box will be sent with machine.

Product Quality

All products are guaranteed for one year, if any problems happen in guarantee period, our company will maintain for free.

Technical Service

We can provide design, installation and debugging services or remote maintenance teaching.

Delivery The Cargo To Nearest Port

We will arrange the shipment and delivery the cargo to your nearest port, save time and cost.

Detail Product Information

Provide picture, video, instruction and product brochure.

Reply Timely

24 hours hot line ,we will reply email within 12 hours.



FAQ

1. What about your machine quality?
Our factory has more than 22 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate;

already exported to many countries and areas; already got customer’s good reputation.
2. What about your machine price?
Anytime we will garanteen quality first, no matter price is good or not for us. Quality is first, on the top quality basis, of coursse you will get r

easonable and satisfied price!

3. What about the delivey date?

Due to the non-standard size machine, we need to book all the relative parts according to the requirement of the clients, the delivery date would

be 1-- 3 moths accordingly.
3. How can you ensure the machines' quality after we put the order?
Before the delivery, we will send you machines' pictures and videos, or you can come to our factory to make the quality checking by yourself,

or by the third party inspection organization that contacted by your side.
